Treemaps show parts of a whole using nested rectangles. Each rectangle's size represents the value of a metric, and dimensions define how the data is grouped and nested. You can use a single dimension or multiple and they will work as described below.

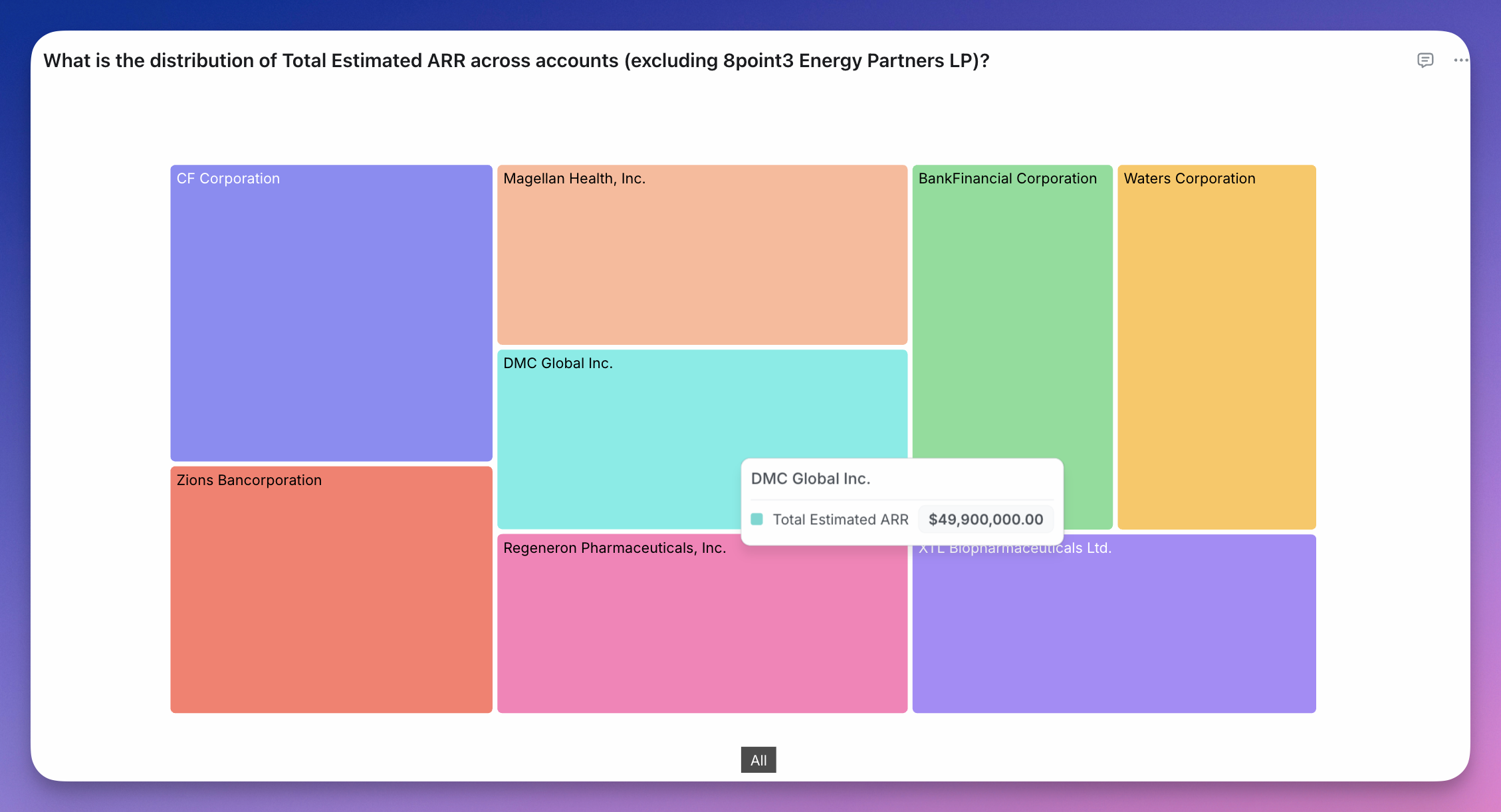

One dimension: Each category becomes a rectangle, sized by the metric value.

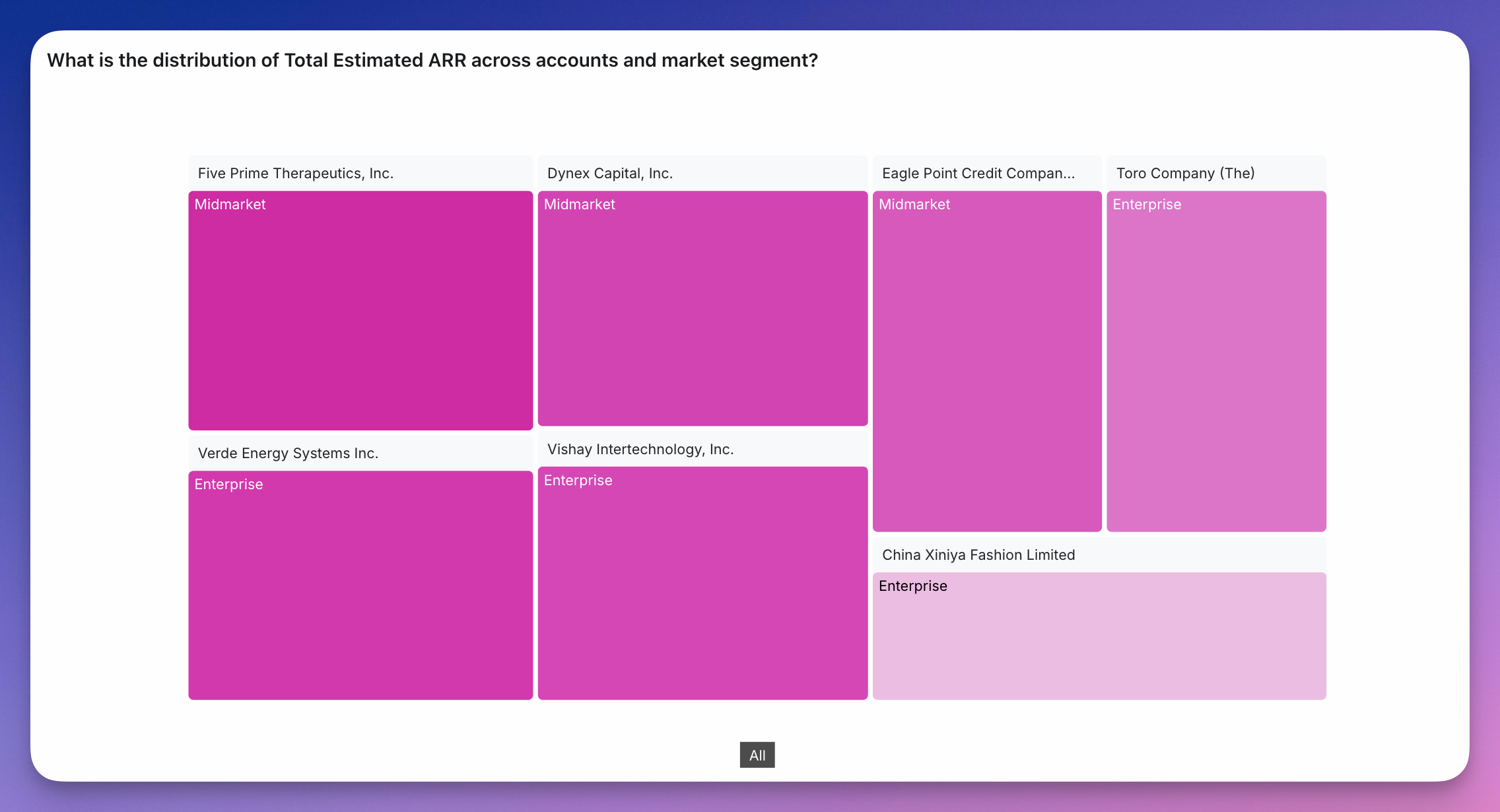

Two dimensions: Creates a hierarchy where each rectangle is split into sub-rectangles based on the second dimension.

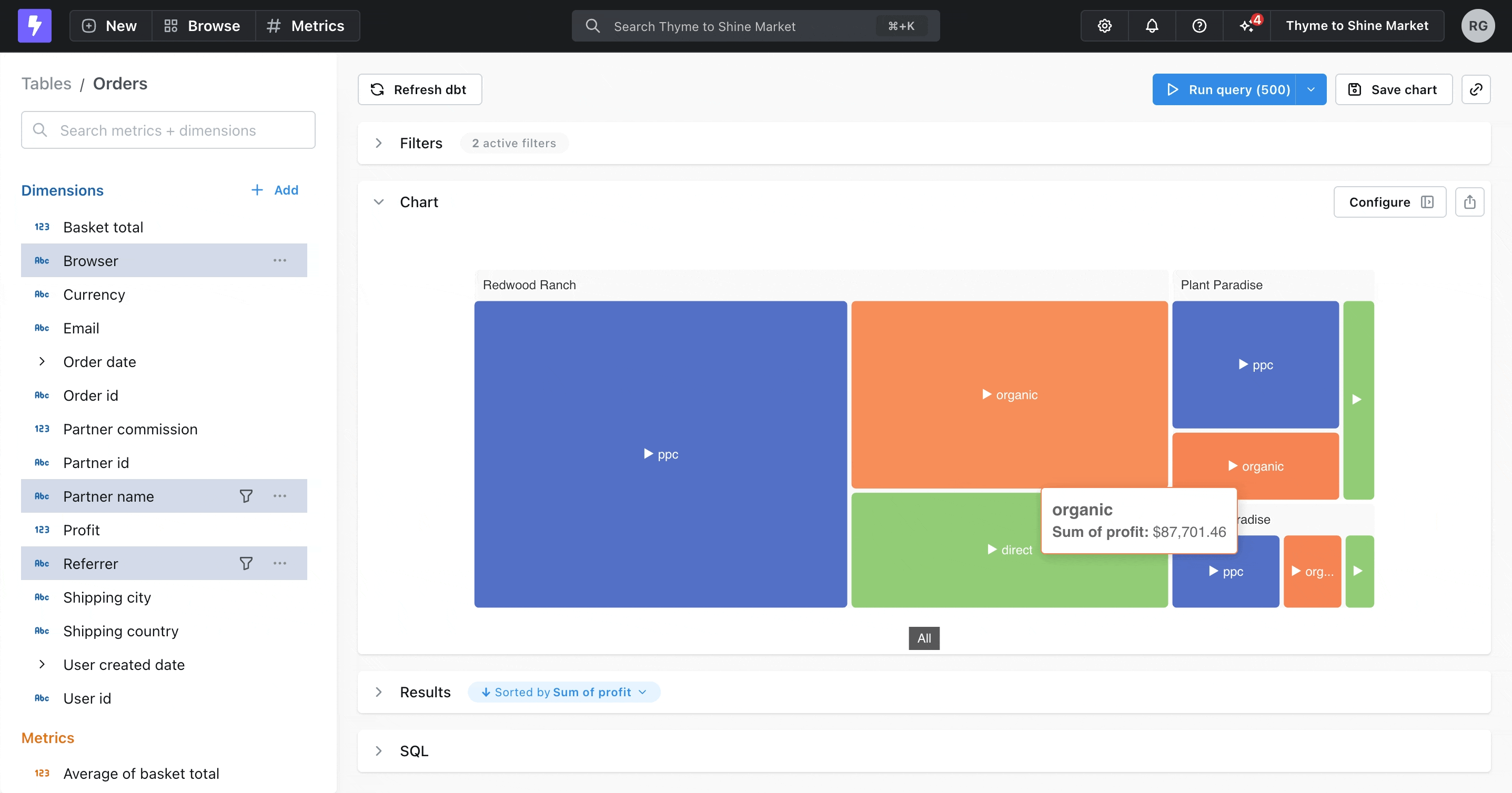

Three or more dimensions: The chart displays the top-level hierarchy. Users can click to drill down into deeper layers.

Treemaps are useful when:

• You want to compare proportions across categories
• You're visualizing hierarchical data
• Space is limited and you want a compact alternative to bar or pie charts

To create a treemap, select Treemap as the chart type and choose your dimensions.

Layout

• Dimension hierarchy tells Qyra how to group or nest the dimensions.
• Size metric determines how large each section of the treemap chart is.
• Color metric allows you to set a color scale for Highlighting each section of the treemap.

Display

• Minimum section size determines when to start hiding sections, anything smaller than this size can be shown by zooming in.
• Max leaf depth allows you to choose when a user needs to start drilling into sections to see the next tier, default value is 2.
